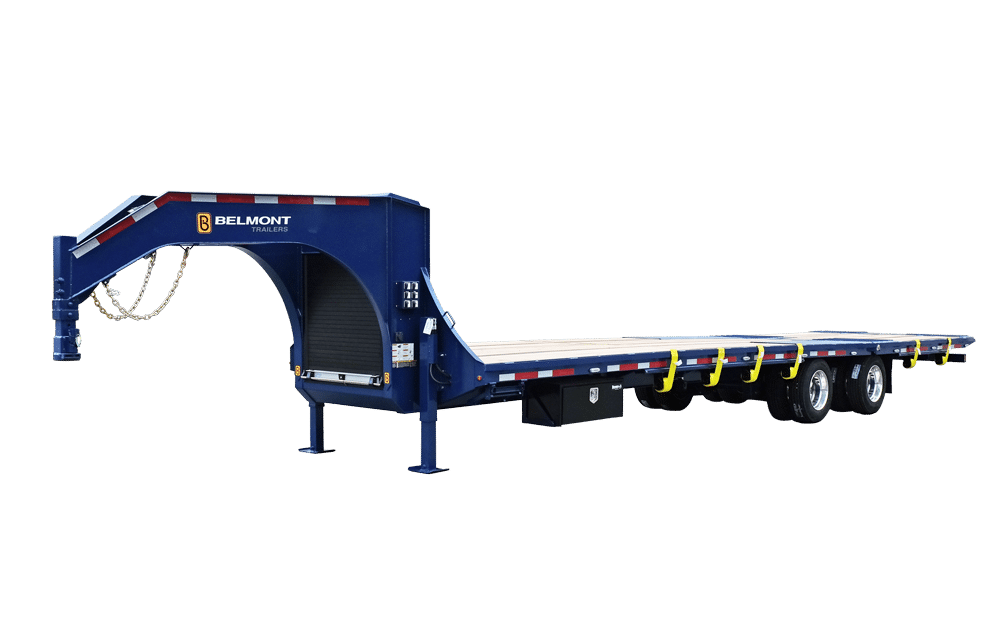

Dual Wheel Gooseneck Deckover HD 24K Hydraulic Dovetail
When time is money, the Hydraulic Dovetail model gives you the edge. With a 12' powered dovetail and 12K HD axles on a 48" spread, this trailer is designed for smooth loading, enhanced stability, and unmatched strength. Perfect for transporting low-clearance equipment or high-value machinery.
GXD32 – 32′ Hydraulic Dovetail
GVWR
24000
EMPTY WEIGHT
7680
PAYLOAD
16320
BED SIZE
96" x 20'+12'
AXLES
(2) 12K HD Oil Bath
BED HEIGHT
35"
Standard Features
ADD TO COMPARE

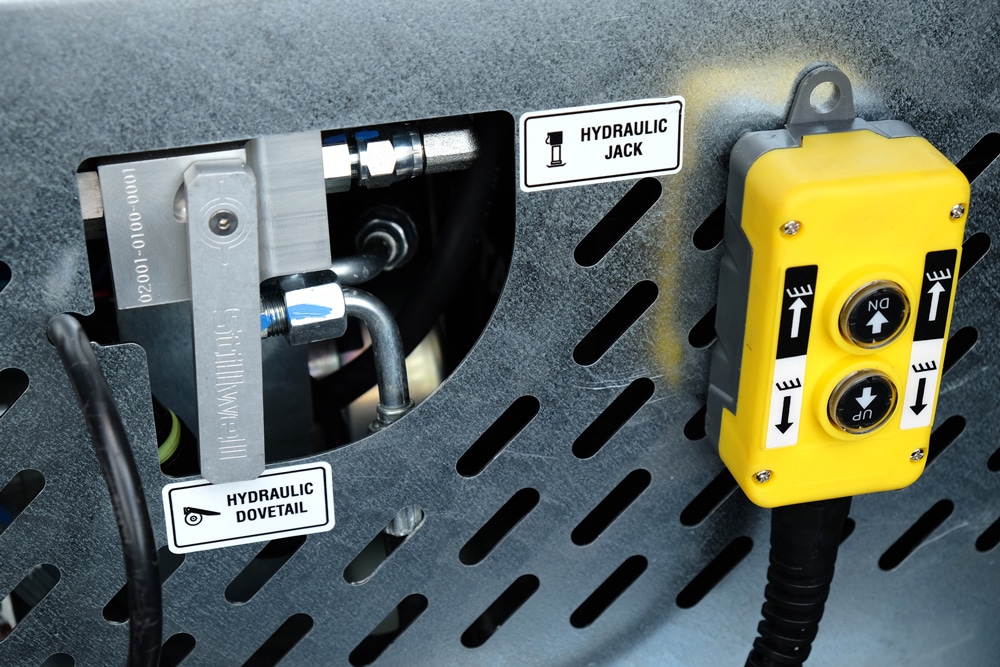

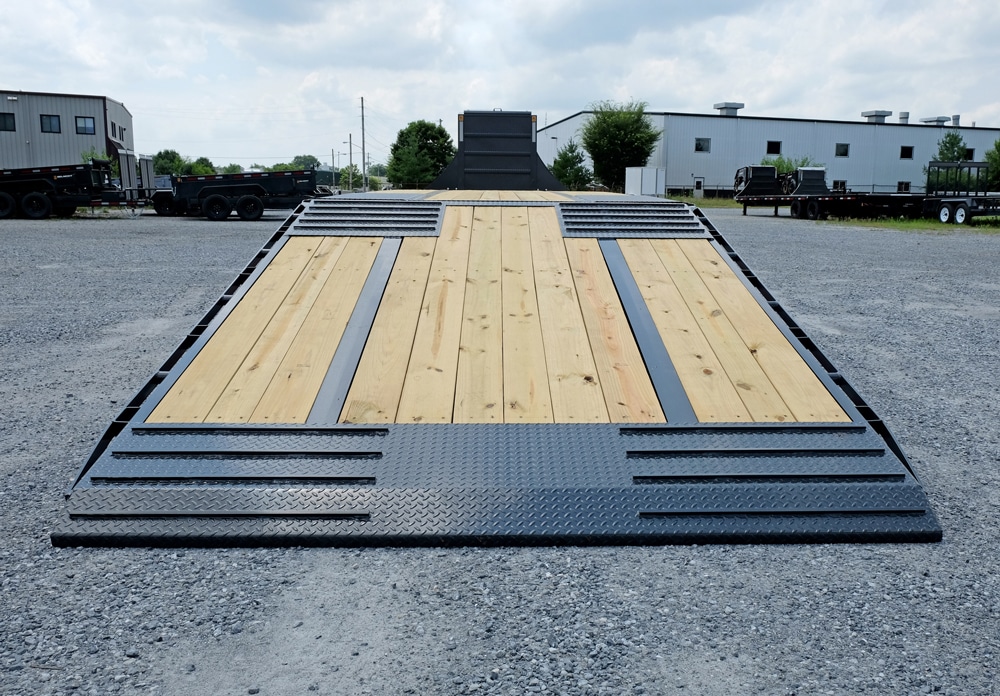

Download PDF - 12' Hydraulic Powered Dovetail with 12,000 lb. Lift Capacity
- High Tensile Engineered Gooseneck and 16" Main Beam
- 12K Heavy Duty Dexter Oil Bath Axles with 48" Spread
- Dexter HDSS 30,000lb. Leaf Spring Suspension
- Cross Tube Torque Control
- Electric Self Adjusting Brakes
- ST235/85R16 Range “E” Radial Tires
- 8 Bolt 16" Black Mod Wheels
- High Quality Urethane Paint Primer and Top Coat
- Pierced Frame, 3" Structural I-Beam Cross-Members
- Full Length Rub Rail with Stake Pockets and Chain Pipes

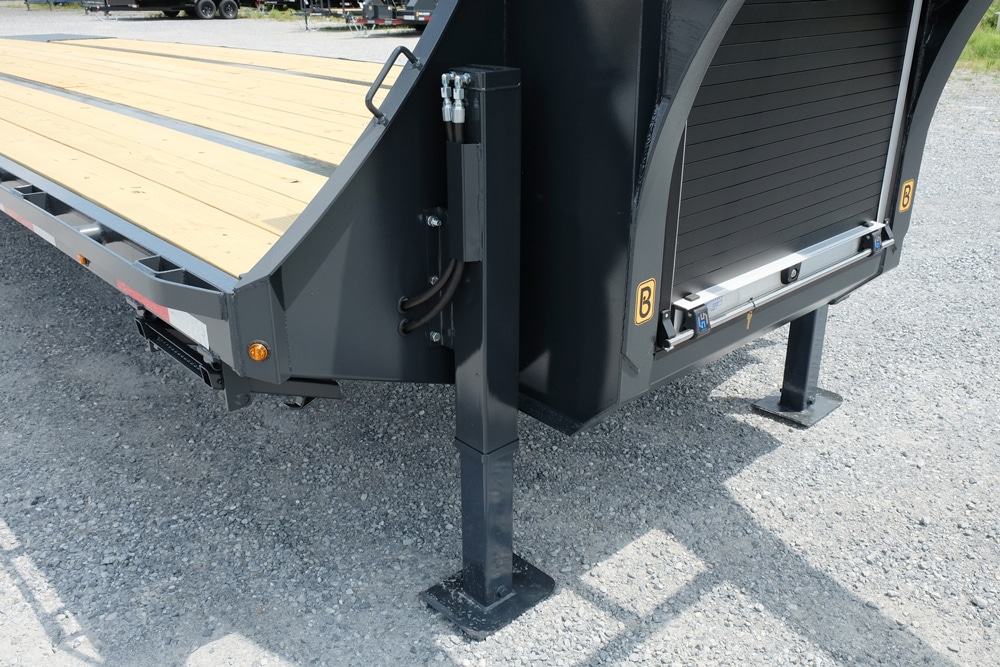

- Dual 12K Side Wind Drop Leg Jacks

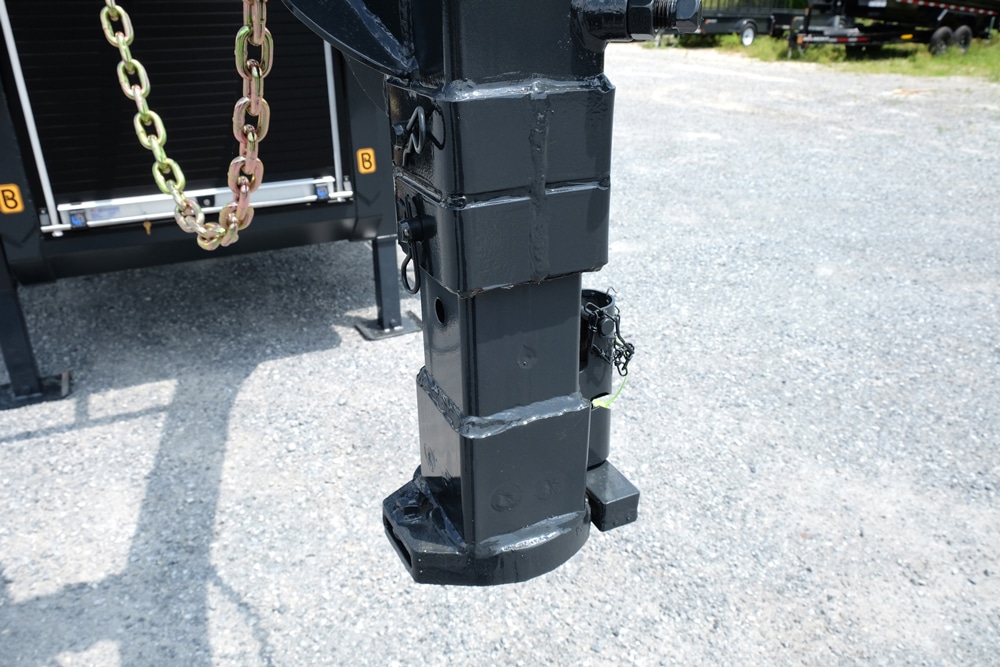

- 2 5/16" Adjustable Gooseneck Coupler
- Removable Zinc Plated Safety Chains with Stow Hooks
- 2 x 8" Treated Yellow Pine Floor
- Sealed Modular Wiring Harness
- Grommet Mounted LED Lights

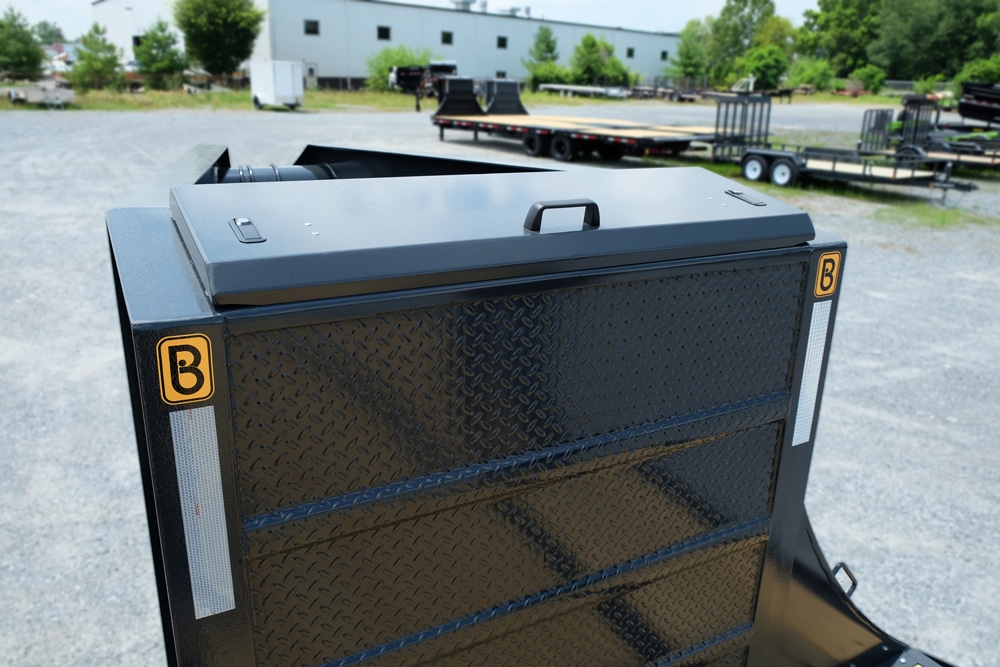

- Front Lockable Full Height Roll-Up-Door Toolbox
- Spare Tire Mount Inside Gooseneck
- Front Steps
- Mud Flaps
GXD35 – 35′ Hydraulic Dovetail
GVWR
24000
EMPTY WEIGHT
8040
PAYLOAD
15960
BED SIZE
96" x 23'+12'
AXLES
(2) 12K HD Oil Bath
BED HEIGHT
35"
Standard Features
ADD TO COMPAREDownload PDF - 12' Hydraulic Powered Dovetail with 12,000 lb. Lift Capacity
- High Tensile Engineered Gooseneck and 16" Main Beam
- 12K Heavy Duty Dexter Oil Bath Axles with 48" Spread
- Dexter HDSS 30,000lb. Leaf Spring Suspension
- Cross Tube Torque Control
- Electric Self Adjusting Brakes
- ST235/85R16 Range “E” Radial Tires
- 8 Bolt 16" Black Mod Wheels
- High Quality Urethane Paint Primer and Top Coat
- Pierced Frame, 3" Structural I-Beam Cross-Members
- Full Length Rub Rail with Stake Pockets and Chain Pipes
- Dual 12K Side Wind Drop Leg Jacks
- 2 5/16" Adjustable Gooseneck Coupler
- Removable Zinc Plated Safety Chains with Stow Hooks
- 2 x 8" Treated Yellow Pine Floor
- Sealed Modular Wiring Harness
- Grommet Mounted LED Lights
- Front Lockable Full Height Roll-Up-Door Toolbox
- Spare Tire Mount Inside Gooseneck
- Front Steps
- Mud Flaps
GXD38 – 38′ Hydraulic Dovetail
GVWR
24000
EMPTY WEIGHT
8400
PAYLOAD
15600
BED SIZE
96" x 26'+12'
AXLES
(2) 12K HD Oil Bath
BED HEIGHT
35"
Standard Features
ADD TO COMPAREDownload PDF - 12' Hydraulic Powered Dovetail with 12,000 lb. Lift Capacity
- High Tensile Engineered Gooseneck and 16" Main Beam
- 12K Heavy Duty Dexter Oil Bath Axles with 48" Spread
- Dexter HDSS 30,000lb. Leaf Spring Suspension
- Cross Tube Torque Control
- Electric Self Adjusting Brakes
- ST235/85R16 Range “E” Radial Tires
- 8 Bolt 16" Black Mod Wheels
- High Quality Urethane Paint Primer and Top Coat
- Pierced Frame, 3" Structural I-Beam Cross-Members
- Full Length Rub Rail with Stake Pockets and Chain Pipes
- Dual 12K Side Wind Drop Leg Jacks
- 2 5/16" Adjustable Gooseneck Coupler
- Removable Zinc Plated Safety Chains with Stow Hooks
- 2 x 8" Treated Yellow Pine Floor
- Sealed Modular Wiring Harness
- Grommet Mounted LED Lights
- Front Lockable Full Height Roll-Up-Door Toolbox
- Spare Tire Mount Inside Gooseneck
- Front Steps
- Mud Flaps
GXD40 – 40′ Hydraulic Dovetail
GVWR
24000
EMPTY WEIGHT
8640
PAYLOAD
15360
BED SIZE
96" x 28'+12'
AXLES
(2) 12K HD Oil Bath
BED HEIGHT
35"
Standard Features
ADD TO COMPAREDownload PDF - 12' Hydraulic Powered Dovetail with 12,000 lb. Lift Capacity
- High Tensile Engineered Gooseneck and 16" Main Beam
- 12K Heavy Duty Dexter Oil Bath Axles with 48" Spread
- Dexter HDSS 30,000lb. Leaf Spring Suspension
- Cross Tube Torque Control
- Electric Self Adjusting Brakes
- ST235/85R16 Range “E” Radial Tires
- 8 Bolt 16" Black Mod Wheels
- High Quality Urethane Paint Primer and Top Coat
- Pierced Frame, 3" Structural I-Beam Cross-Members
- Full Length Rub Rail with Stake Pockets and Chain Pipes
- Dual 12K Side Wind Drop Leg Jacks
- 2 5/16" Adjustable Gooseneck Coupler
- Removable Zinc Plated Safety Chains with Stow Hooks
- 2 x 8" Treated Yellow Pine Floor
- Sealed Modular Wiring Harness
- Grommet Mounted LED Lights
- Front Lockable Full Height Roll-Up-Door Toolbox
- Spare Tire Mount Inside Gooseneck
- Front Steps
- Mud Flaps
GXD44 – 44′ Hydraulic Dovetail
GVWR
24000
EMPTY WEIGHT
9120
PAYLOAD
14880
BED SIZE
96" x 32'+12'
AXLES
(2) 12K HD Oil Bath
BED HEIGHT
35"
Standard Features
ADD TO COMPAREDownload PDF - 12' Hydraulic Powered Dovetail with 12,000 lb. Lift Capacity
- High Tensile Engineered Gooseneck and 16" Main Beam
- 12K Heavy Duty Dexter Oil Bath Axles with 48" Spread
- Dexter HDSS 30,000lb. Leaf Spring Suspension
- Cross Tube Torque Control
- Electric Self Adjusting Brakes
- ST235/85R16 Range “E” Radial Tires
- 8 Bolt 16" Black Mod Wheels
- High Quality Urethane Paint Primer and Top Coat
- Pierced Frame, 3" Structural I-Beam Cross-Members
- Full Length Rub Rail with Stake Pockets and Chain Pipes
- Dual 12K Side Wind Drop Leg Jacks
- 2 5/16" Adjustable Gooseneck Coupler
- Removable Zinc Plated Safety Chains with Stow Hooks
- 2 x 8" Treated Yellow Pine Floor
- Sealed Modular Wiring Harness
- Grommet Mounted LED Lights
- Front Lockable Full Height Roll-Up-Door Toolbox
- Spare Tire Mount Inside Gooseneck
- Front Steps
- Mud Flaps
