Deckover Trailers

17'-7K | 17'-10K | 20'-10K

Deckover Trailers

A compact but well-built deckover trailer has almost endless uses around the farm or on the job site. Moving equipment, picking up building material or delivering a load of hay is all in a day’s work. The 3' adjustable beavertail with slide-in ramps is a popular option for people that value versatility.

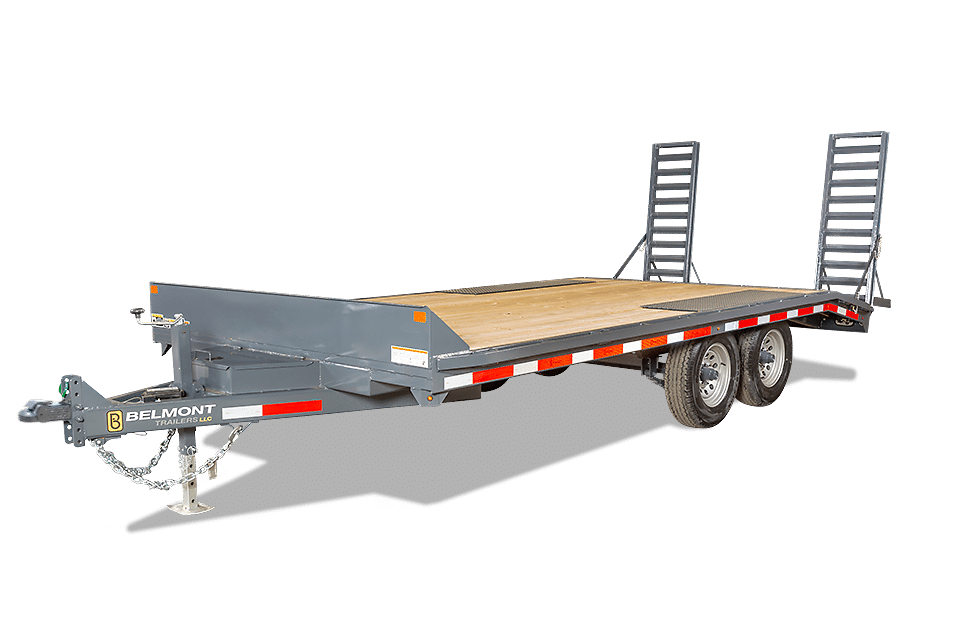

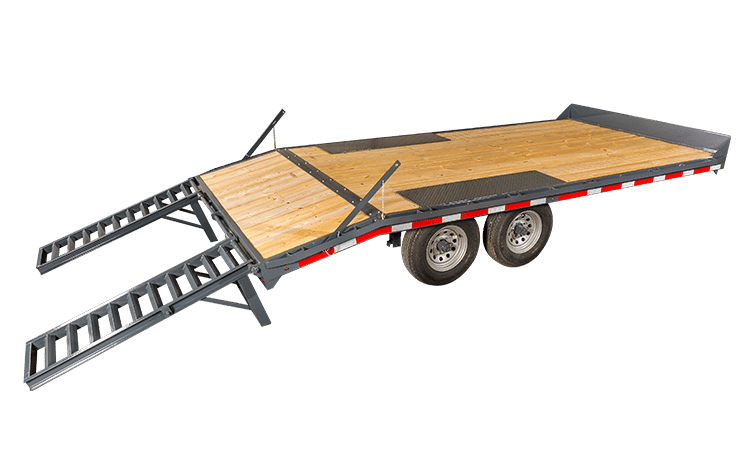

DO817-7K – 17′-7K Deckover

GVWR 7000
EMPTY WGHT 2730
PAYLOAD 4270
BED SIZE 91" x 14'+3'
AXLES (2) 3.5K E-Z Lube
BED HEIGHT 29½"

Standard Features

download iconDownload PDF
  • Heavy-duty steel frame
  • Sturdy front headboard
  • 2” X 8” treated yellow pine floor
  • 2⁵/₁₆" adjustable coupler
  • 7K bolt on, drop leg jack
  • Dexter EZ Lube axles with self-adjusting electric brakes
  • Mod wheels and radial tires
  • Removable zinc plated safety chains with stow hooks
  • High-quality urethane paint primer and top coat
  • Sealed Phillips® modular wiring harness

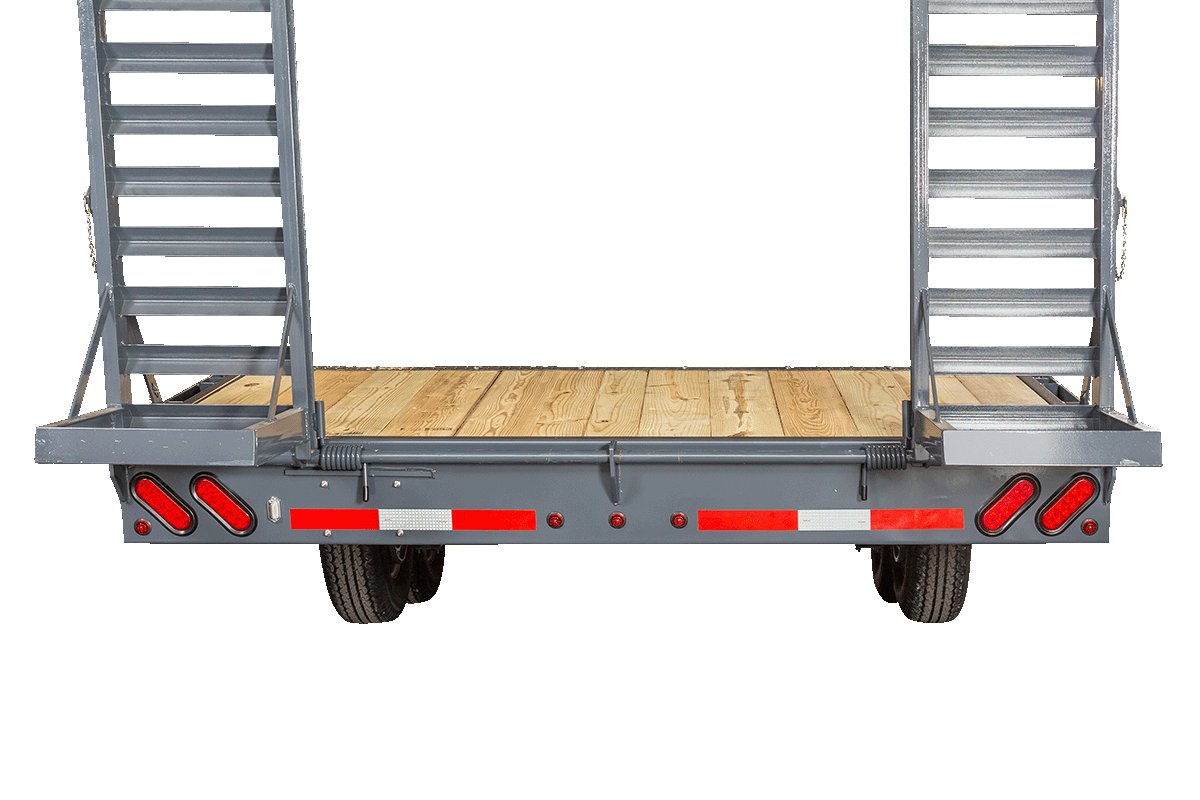

  • Grommet mounted LED lights
  • 3' long, high clearance beavertail
  • 5' long spring assisted ladder ramps with support stands
  • Full length rub rail with stake pockets and chain posts

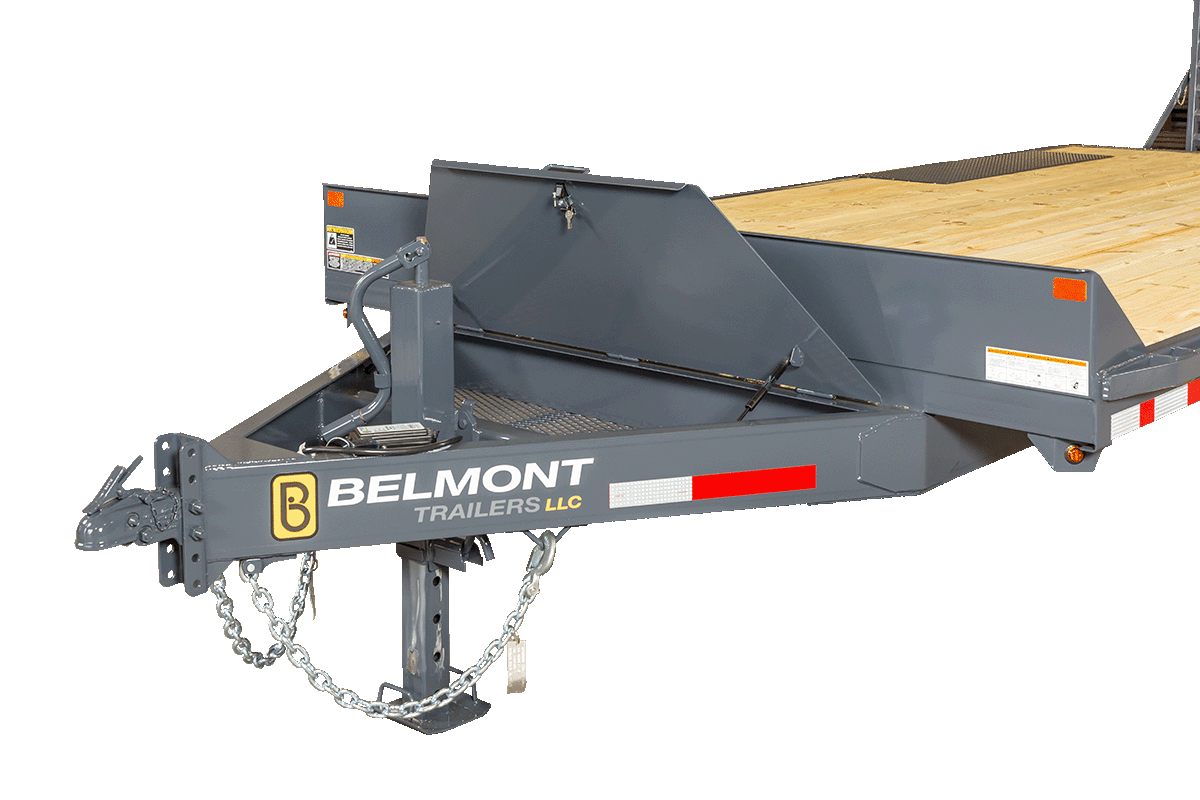

  • Lockable A-frame toolbox
See moreSee less

Available Options

  • Hot dipped galvanized finish
  • D-rings
  • Winch mount
  • Underbody windup spare tire mount
  • Frame mounted swivel support stands (standard on adjustable beavertail)
  • Additional LED lights
  • Additional trailer length
  • Total flat deck - no ramps or beavertail
  • Heavy duty split mesh ramps
  • Adjustable beavertail with slide in or stand up ramps
  • 4-bolt pintle ring
  • Surge brakes
  • Torsion axle
  • Spare tire and wheel
  • Aluminum wheels/radial tires
  • 4" straps on sliding winch track

DO817-10K – 17′-10K Deckover

GVWR 9990
EMPTY WGHT 2810
PAYLOAD 7180
BED SIZE 91" X 14'+3'
AXLES (2) 5.2K E-Z Lube
BED HEIGHT 30½"

Standard Features

download iconDownload PDF
  • Heavy-duty steel frame
  • Sturdy front headboard
  • 2" x 8" treated yellow pine floor
  • 2⁵/₁₆" adjustable coupler
  • 7K bolt on, drop leg jack
  • Dexter EZ Lube axles with self-adjusting electric brakes
  • Mod wheels and radial tires
  • Removable zinc plated safety chains with stow hooks
  • High-quality urethane paint primer and top coat
  • Sealed Phillips® modular wiring harness
  • Grommet mounted LED lights
  • 3' long, high clearance beavertail
  • 5' long spring assisted ladder ramps with support stands
  • Full length rub rail with stake pockets and chain posts
  • Lockable A-frame toolbox
See moreSee less

Available Options

  • Hot dipped galvanized finish
  • D-rings
  • Winch mount
  • Underbody windup spare tire mount
  • Frame mounted swivel support stands (standard on adjustable beavertail)
  • Additional LED lights
  • Additional trailer length
  • Total flat deck - no ramps or beavertail
  • Heavy duty split mesh ramps
  • Adjustable beavertail with slide in or stand up ramps
  • 4-bolt pintle ring
  • Surge brakes
  • Torsion axle
  • Spare tire and wheel
  • Aluminum wheels/radial tires
  • 4" straps on sliding winch track

DO820-10K – 20′-10K Deckover

GVWR 9990
EMPTY WGHT 3030
PAYLOAD 6960
BED SIZE 91" x 17'+3'
AXLES (2) 5.2K E-Z Lube
BED HEIGHT 30½"

Standard Features

download iconDownload PDF
  • Heavy-duty steel frame
  • Sturdy front headboard
  • 2" x 8" treated yellow pine floor
  • 2⁵/₁₆" adjustable coupler
  • 7K bolt on, drop leg jack
  • Dexter EZ Lube axles with self-adjusting electric brakes
  • Mod wheels and radial tires
  • Removable zinc plated safety chains with stow hooks
  • High-quality urethane paint primer and top coat
  • Sealed Phillips® modular wiring harness
  • Grommet mounted LED lights
  • 3' long, high clearance beavertail
  • 5' long spring assisted ladder ramps with support stands
  • Full length rub rail with stake pockets and chain posts
  • Lockable A-frame toolbox
See moreSee less

Available Options

  • Hot dipped galvanized finish
  • D-rings
  • Winch mount
  • Underbody windup spare tire mount
  • Frame mounted swivel support stands (standard on adjustable beavertail)
  • Additional LED lights
  • Additional trailer length
  • Total flat deck - no ramps or beavertail
  • Heavy duty split mesh ramps
  • Adjustable beavertail with slide in or stand up ramps
  • 4-bolt pintle ring
  • Surge brakes
  • Torsion axle
  • Spare tire and wheel
  • Aluminum wheels/radial tires
  • 4" straps on sliding winch track
